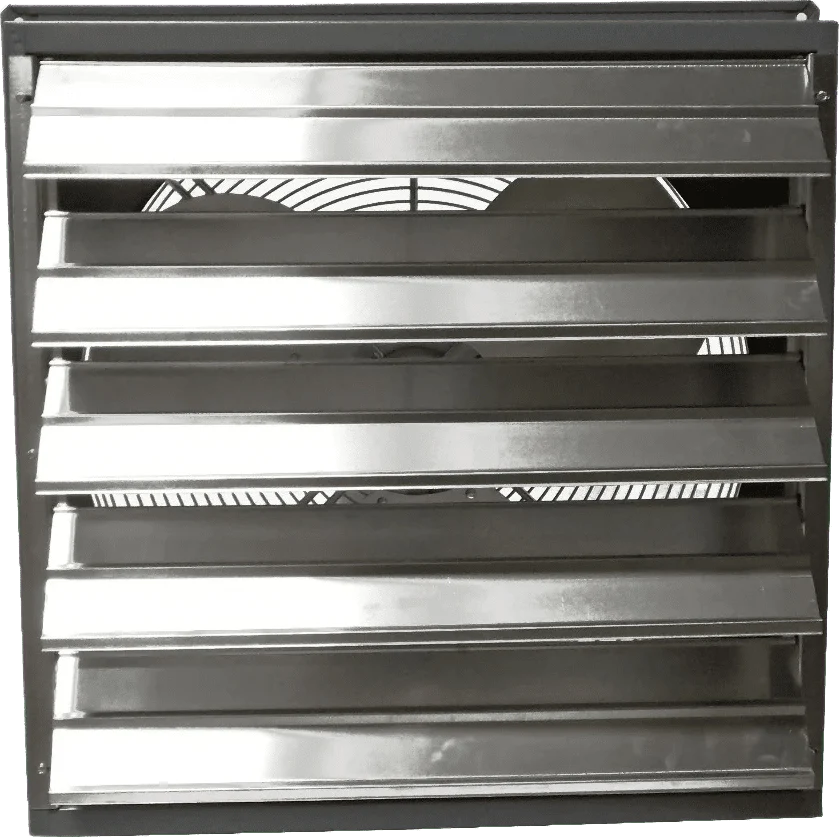

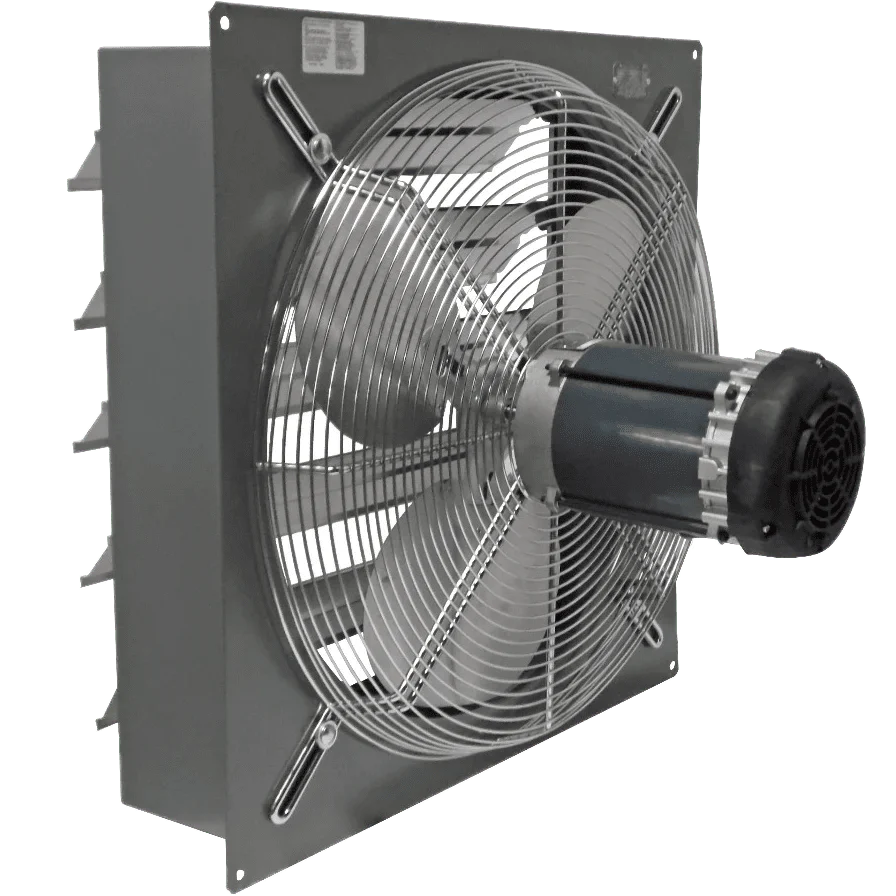

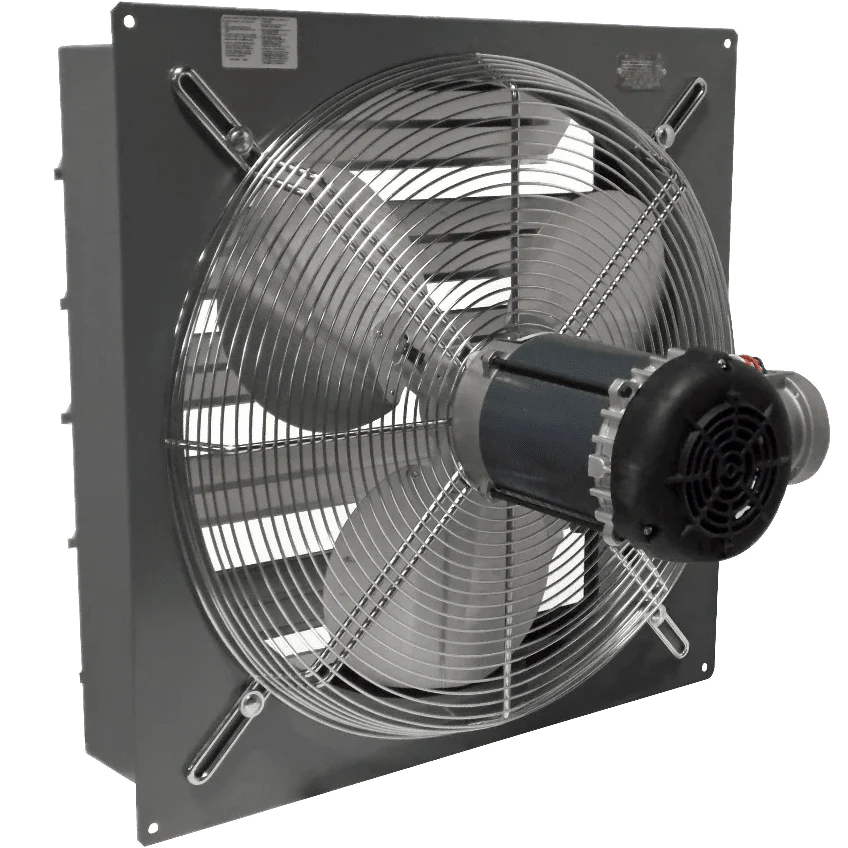

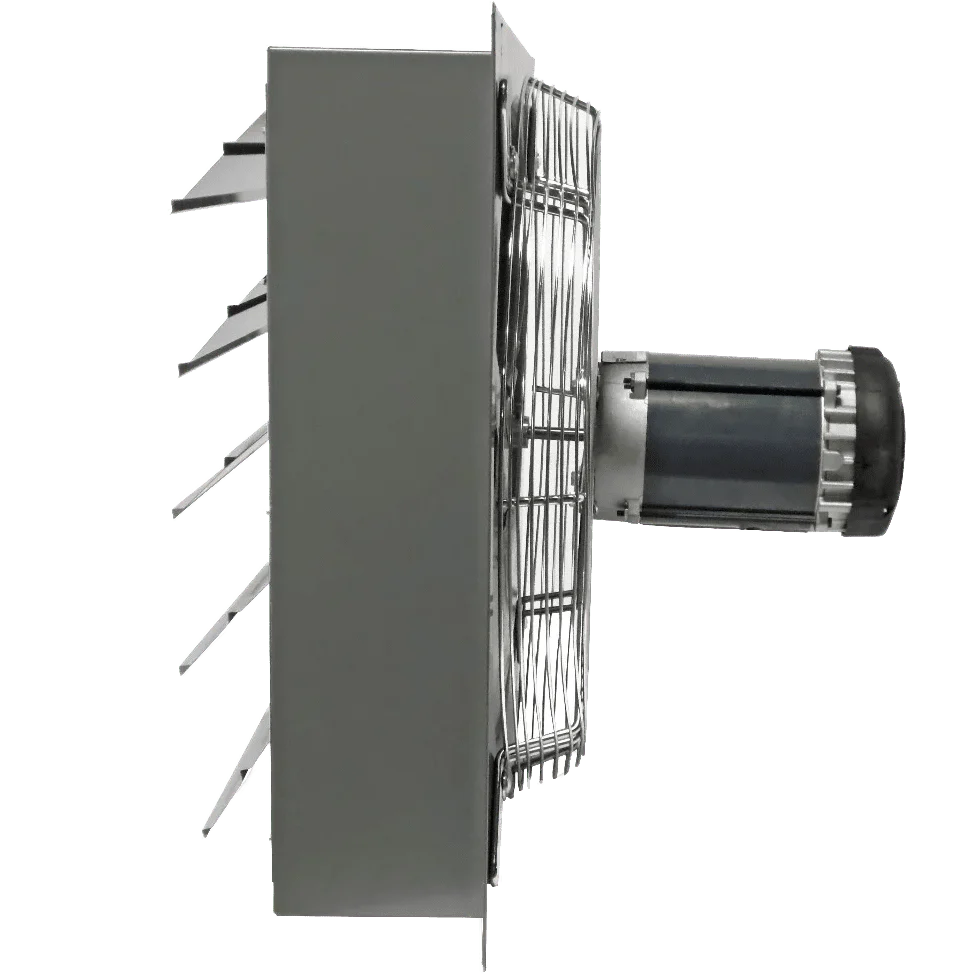

Canarm SD10-XPF 10-In. Explosion Proof Wall Mount Shutter Exhaust Fan
Built for use in commercial applications, the Canarm SD10-XPF delivers safe and reliable ventilation in even the most sensitive of environments. Its explosion proof motor is designed to conform to Class I and Class II standards and features a steel box housing and durable fan blades. This unit can provide an airflow of up to 620 CFM.
Explosion Proof Shutter Exhaust Fan
The Canarm SD10-XPF is an explosion proof fan that meets and conforms to the following standards:
- Class I, Group C: Atmospheres containing ethyl ether, ethylene, gases or vapors of equivalent hazard.
- Class I, Group D: Atmospheres such as acetone, ammonia, benzene, butane, cyclopropane, ethanol, gasoline, hexane, methane, natural gas, naphtha, propane, or gasses or vapors of equivalent hazard.
- Class II, Group F: Atmospheres containing carbonaceous dust, including carbon black, charcoal, coal, or coke dusts that have more than 8% total entrapped volatiles, or dusts that have been sensitized by other materials so that they present an explosion hazard.
- Class II, Group G: G Atmospheres containing combustible dusts not included in group E or F, including flour, grain, wood, plastic and chemicals.
Canarm SD 10-In. Explosion Proof Fan Featured Specifications
- Reliable Performance: This fan is capable of delivering up to 620 CFM of ventilation.
- Enclosed Motor: Designed with a totally enclosed, ball bearing motor with thermal overload protection.
- Aluminum Fan Blades: Its durable 10-inch fan blades are constructed of heavy-gauge aluminum.
- Steel Housing: The steel welded box housing has a durable powder coated finish.
- Intake Guards: Features heavy wire chrome plated OSHA guards on intake side of fan.
- Ships Assembled: This fan ships completely assembled.
- Framing Dimensions: 13" x 13"
Summary
Safely and reliably ventilate commercial facilities with the Canarm SD 10-In. Explosion Proof Wall Mount Shutter Exhaust Fan.
