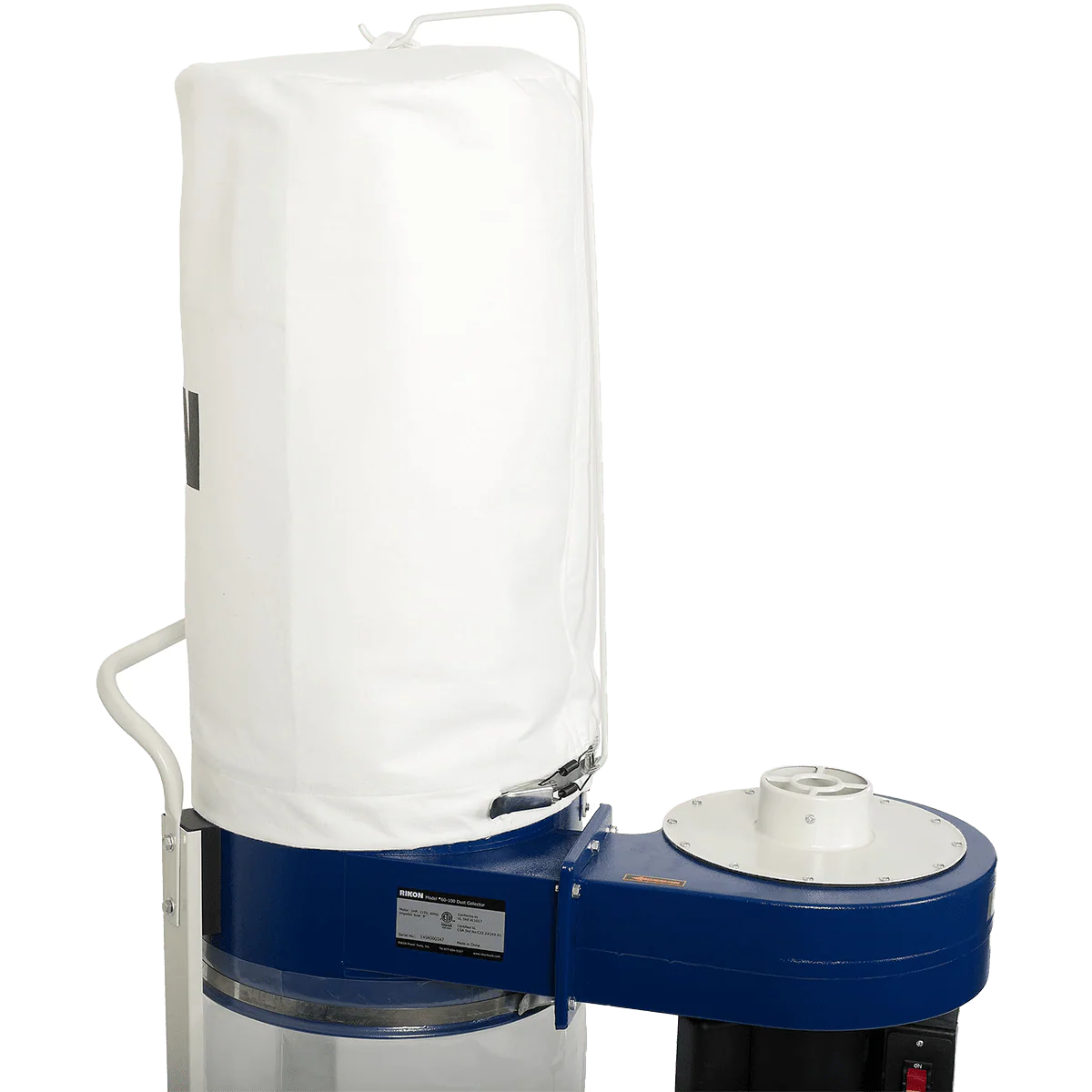

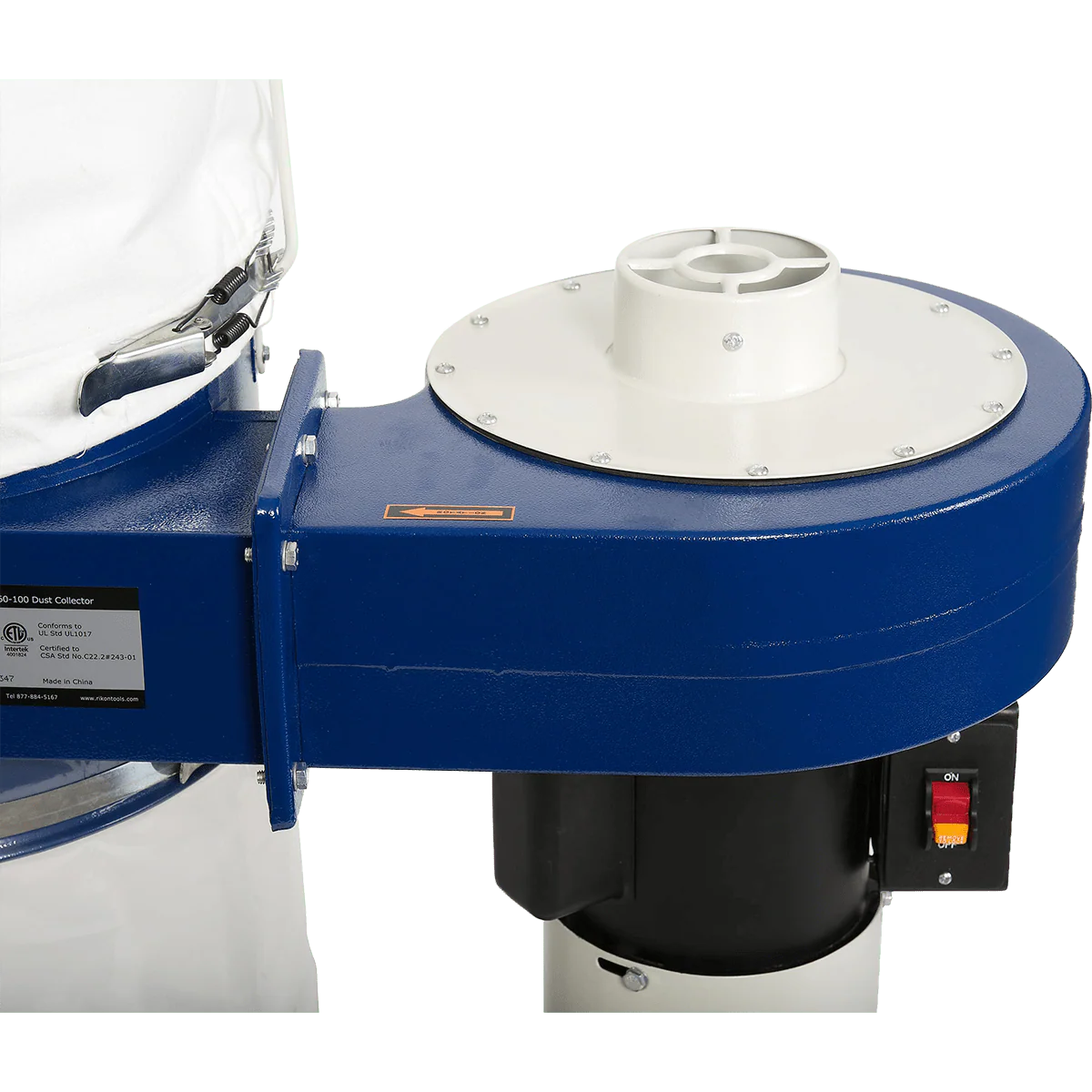

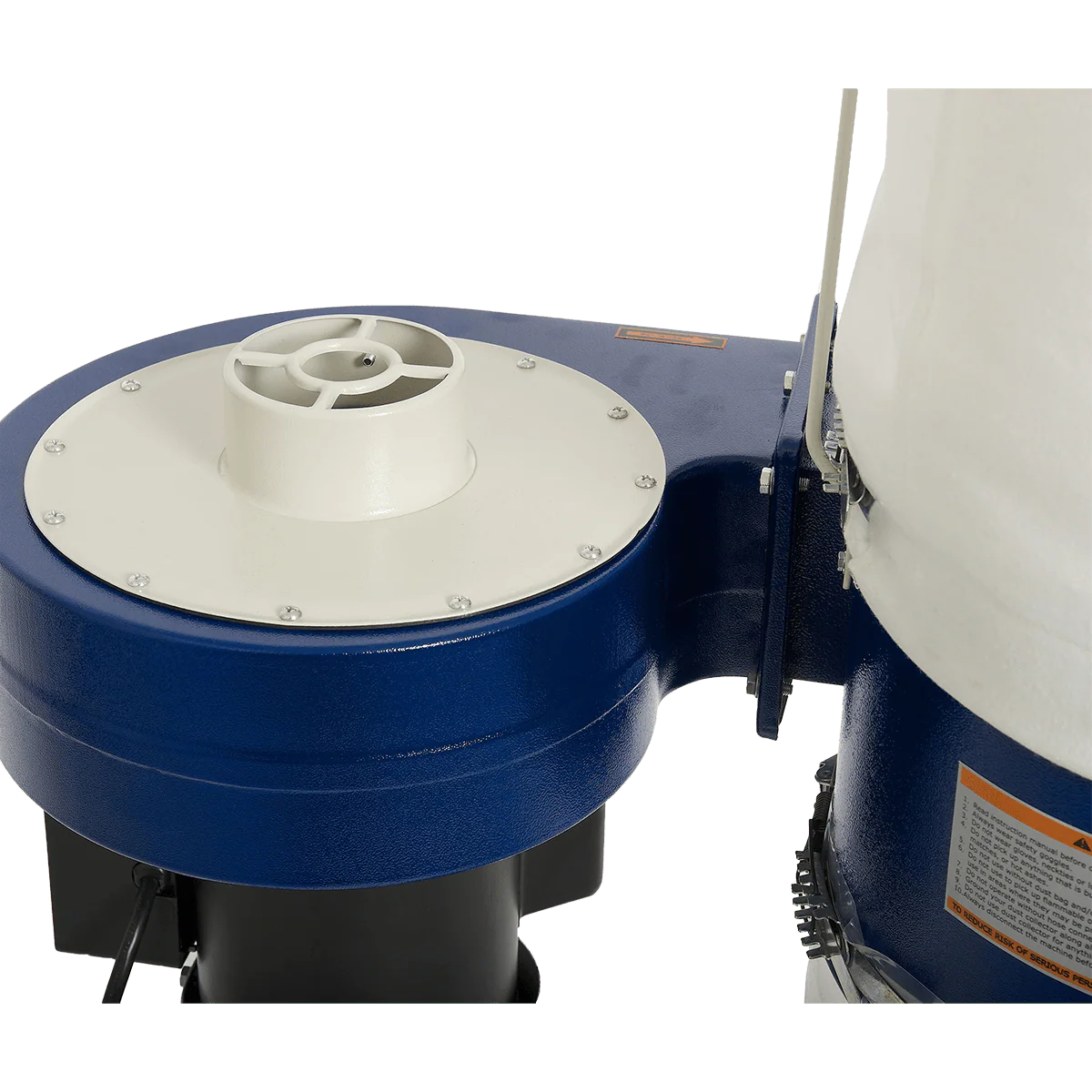

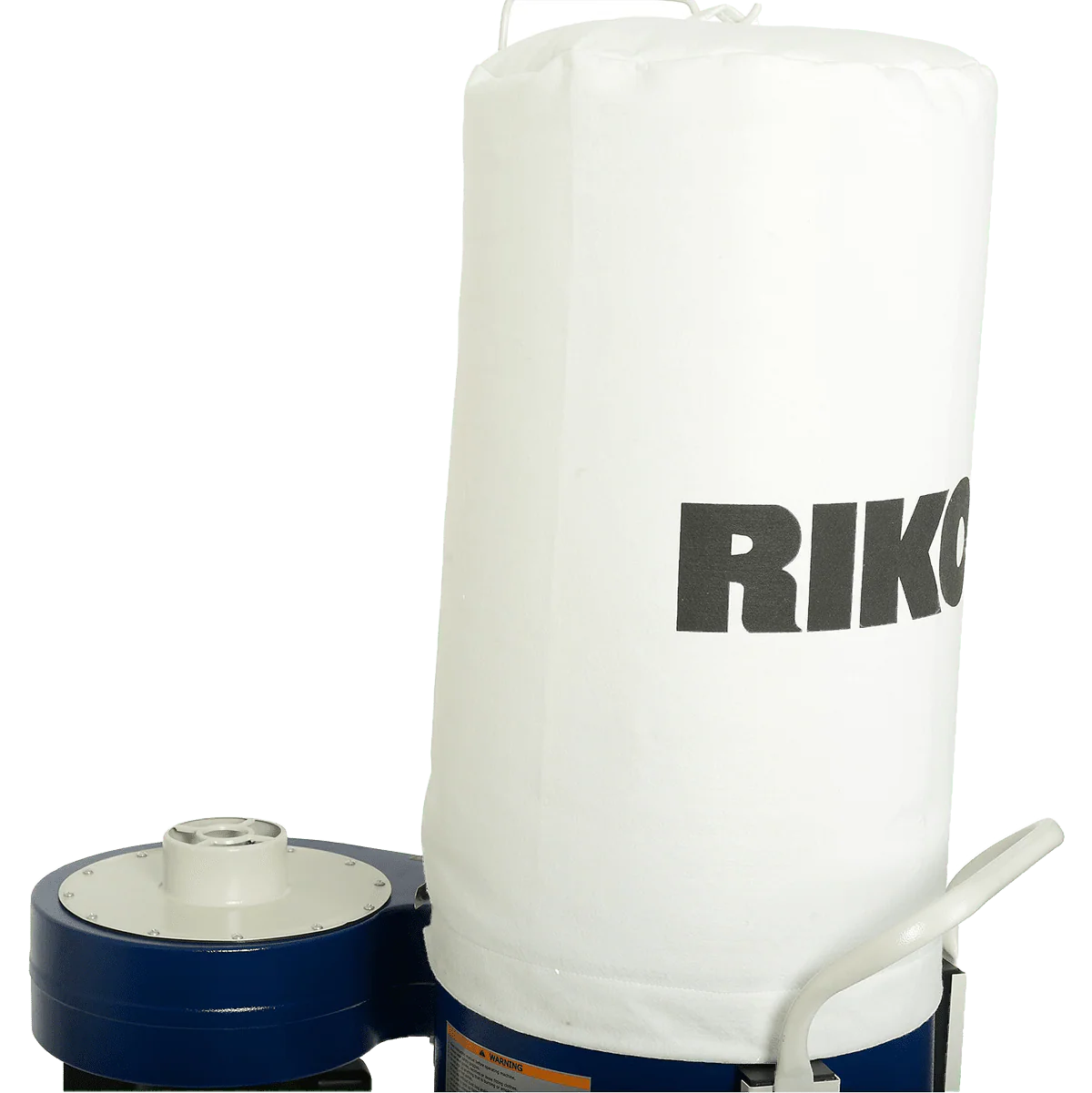

Rikon 60-100 1HP Dust Collector

The Rikon 60-100 Dust Collector easily handles chips and dust from woodworking machines like jointers and planers, helping to keep woodworking spaces relatively dust-free.

• Steel Construction: The base, frame, and blower wheel are all made of durable steel.
• Powerful Motor: Equipped with a 1 horsepower motor, it runs at 3,450 rpm, producing 624 cfm.
• Safety Switch: The power toggle switch requires a center key for operation.
• Large Capacity: The plastic collection bag has a 2.1 cubic foot capacity.

Safety Features

• Grounding: Full instructions for grounding are included to prevent static discharge from igniting fine dust particles. Grounding should be installed for both flexible and rigid plastic and metal ductwork.
• Locking Switch: The on/off locking toggle switch has a center key which can be used to prevent unauthorized use of the dust collector. It must be inserted before the machine can be used.

Filtration

The Rikon 60-100 upper container can be equipped with an optional pleated cartridge filter and effectively captures fine wood dust in a 5-micron filtration bag.

Additional Specifications

• Hose Inlet: 4-inch diameter
• Motor: 1 horsepower
• RPM: 3,450 rpm
• Amps: 7 A
• Airflow: 624 cfm at 4-inch diameter
• Sound: 78 dB at 3 ft.
• Static Pressure (Water Column): 3.25 in. w.c.
• Blower Wheel Diameter: 9 inches
